MGPS - Petion

Standard Simple

Standard

Description

PETION is an anti-biological growth and anti-corrosive system for any seawater circuit, applying electrolysis avoids sea life incrustations, and protects piping against corrosion.
The PETION system is a PETER TABOADA’s patent, and is recommended for all kind of vessels, petrol platforms, and inland seawater refrigeration systems.

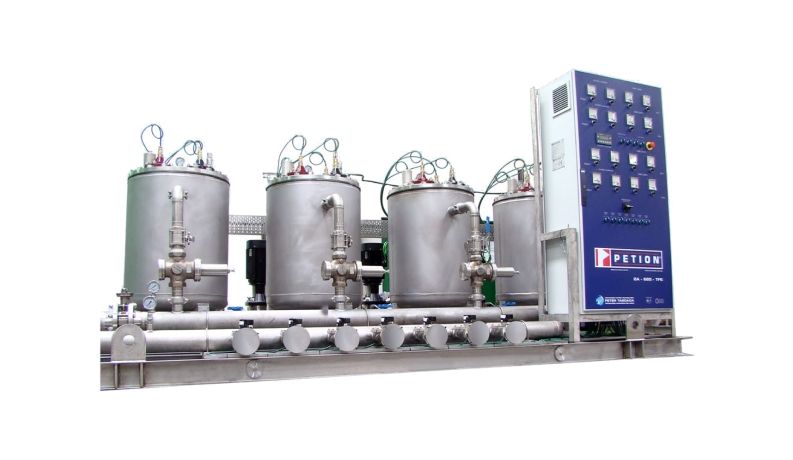

Equipment has 3 different parts:

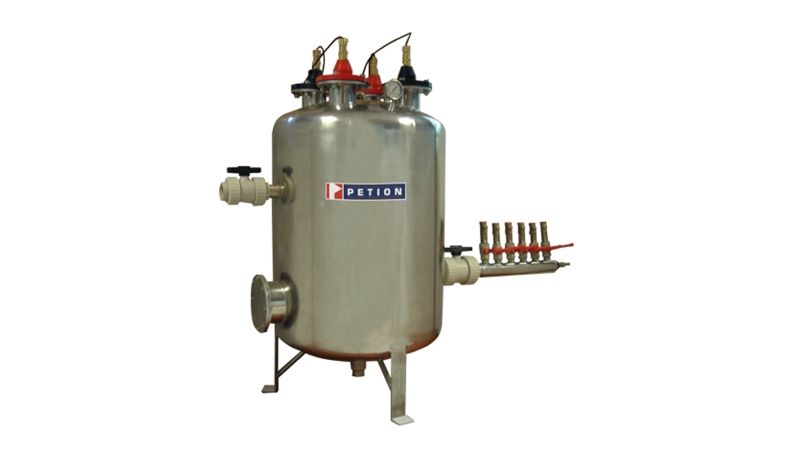

  • Duplex Stainless Steel Electrolytic Tank, where aluminum and copper electrodes are installed.
  • Electrical Control Panel system.
  • Recirculation Pump.

Aluminum electrode avoids corrosion, and copper electrode sea life incrustations.

Characteristics

  • Decreasing maintenance cost of pipelines, valves, seawater inlets, intercoolers,… Avoiding mollusks, crustaceans and algae incrustations.
  • Eliminates sludge formation.
  • Energy savings, because increases refrigeration and recirculation.
  • PETION has long life electrodes, that consumes in a very efficient way (reaches up to 90% of consumption for the aluminum and copper electrodes).
  • Compact system, the interior tank design and electrodes positioning promote an uniform electrodes wear.
  • The Electrolytic Tank whit by-pass allows the checking and electrodes replacement in a few minutes and without vessel docking.

Range

Within this range, we have 4 options:

Model Protect flow Sea water inlet Nº Electrodes Electrode dimensions Dry Weight
A-385-TF 250 m³/h 2 or 3 1  AL + 1 Cu 85 x 200 mm 71 Kg
A-685-TF 750 m³/h 3 or 4 1  AL + 1 Cu 85 x 600 mm 116 Kg
2A-685-TF 1500 m³/h 6 2  AL + 2 Cu 85 x 600 mm 211 Kg
2A-1285-TF 3000 m³/h 6 or 8 2  AL + 2 Cu 85 x 1200 mm 379 Kg

(*) Dimensions in mm

Customized equipments
